  wwHO-PEM HGL-300 & HGL-600

General Optics Corporation (GOC), a global provider of key components for both Hydrogen utilization and production, has developed the HO-PEM product line for onsite Hydrogen generation with zero emission of greenhouse gases. HGL series are models for laboratory instrumentation, such as Gas Chromatograph.  HGL series feature low power consumption, rapid startup and high gas purity (99.999%). Based on patent-pending technologies, HGL series provide superior performance and excellent stability.

HGL series are cost-effective, cylinder-free solutions for delivering Hydrogen gas with safety built in to every component. The system eliminates the expensive gas infrastructure and storage safety concerns, and requires only de-ionized water to produce a constant supply of Hydrogen gas. It’s the preferred choice of laboratories requiring onsite Hydrogen generation with quality, reliability and safety

Advanced Features
•Low power consumption
•Compact size/ Super slim foot print
•Tumbling protection
•Built-in safety for over-temperature and over pressure
•Hydrogen purity higher than 99.999%
•Built-in safety for H2 leakage detection and system check

Application
•CVD
•Gas quality monitoring
•Gas chromatography (GC)
•Material heat treatment
•Hydrogen Plasma cleaner

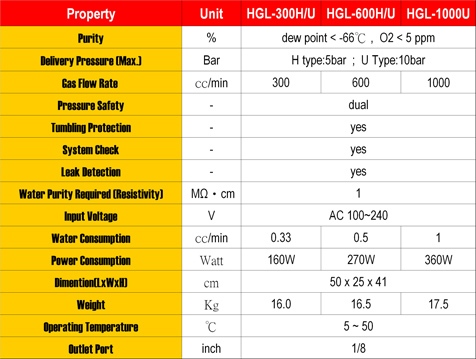

Typical Properties*

* Typical properties are based on our internal test results, not guaranteed values.

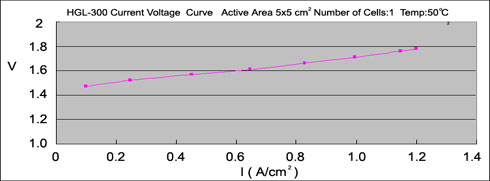

Cell Performance**

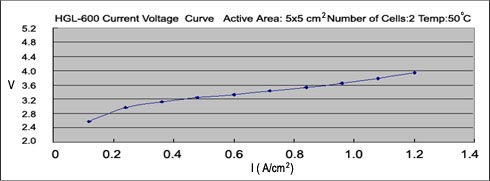

HGL600_IV

Stability
**We do not make any claims about performance nor do we guarantee any performance specs. The actual performance obtained by a customer will depend on choices made regarding the various operating variables.

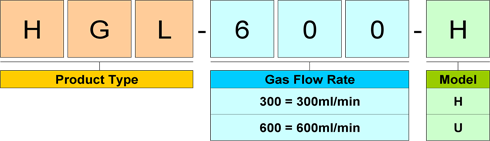

Ordering Informations
